How Glass Wool Fiber Diameter Impacts Thermal Conductivity and Acoustic NRC: An Engineering Guide

• Thermal Performance: Finer glass wool fiber diameters (typically 4.0–5.0 µm) increase thermal resistance (R-value) by creating smaller dead-air pockets, reducing radiative and convective heat transfer at equal nominal density.

• Acoustic Absorption: Fine fibers increase specific surface area and airflow resistivity (σ), boosting low-to-mid frequency Sound Absorption Coefficients (NRC up to 0.95–1.00).

• Shot Content & Mechanical Strength: Minimizing shot (non-fibrous slag particles) and maintaining uniform fiber diameter yields higher tensile strength, lower dusting, and superior vibration resistance—vital for marine (MED certified) and industrial HVAC applications.

Introduction: Why Fiber Fineness Matters in Glass Wool Insulation

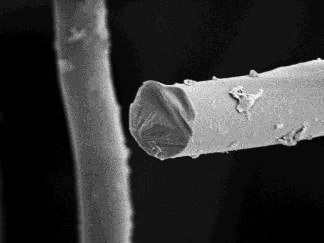

When specifying centrifugal glass wool for HVAC duct lining, marine bulkheads, or industrial thermal enclosures, density and thickness are often the primary focus. However,glass wool fiber diameter (measured in micrometers or microns, µm) is the fundamental microstructural variable controlling thermal conductivity (λ), acoustic flow resistivity, and moisture durability.

Centrifugal glass wool manufacturing utilizes high-speed spinning rotors to draw molten borosilicate glass into long, resilient fibers. Depending on process parameters (spinning speed, flame attenuation, temperature, and binder formula), nominal fiber diameters range from4.0 µm to 7.0 µm.

This article examines the thermodynamics, fluid flow mechanics, and mechanical implications of fiber diameter selection for B2B distributors, thermal engineers, and OEM specifiers.

1. Thermal Conductivity (λ) vs. Glass Wool Fiber Diameter

The total thermal conductivity (λ_total) of fibrous glass wool consists of three mechanisms:

λ_total = λ_solid + λ_gas + λ_radiation

1. Gaseous Conduction & Convection (λ_gas): By reducing the average fiber diameter from 7.0 µm to 4.0 µm at a fixed bulk density, the number of fibers per unit volume increases exponentially. This significantly decreases the mean free path of air molecules trapped inside the matrix (the Knudsen effect), reducing localized gas convection.

2. Radiative Heat Transfer (λ_radiation): Smaller fiber diameters offer a substantially larger total surface area per unit mass. Fine fibers act as an efficient infrared radiation barrier, scattering radiant heat back across high-temperature thermal gradients.

Comparative Performance Matrix

Fiber Diameter Range (µm)	Typical Density (kg/m³)	Thermal Conductivity λ at 24°C (W/m·K)	Primary Industrial Application
4.0 – 5.0 µm (Fine)	24 – 48	0.031 – 0.033	Premium Marine Insulation (MED Certified), Aerospace, High-Efficiency HVAC
5.1 – 6.0 µm (Standard)	16 – 32	0.034 – 0.037	Commercial HVAC Ducts, Drywall Partition Soundproofing
6.1 – 8.0+ µm (Coarse)	10 – 16	0.038 – 0.042	Economy Thermal Blankets, Low-Density General Building Insulation

Key Insight: Utilizing fine fiber glass wool (4.0–5.0 µm) enables insulation systems to achieve targeted R-values at lower nominal densities, delivering critical weight savings for shipbuilding and transportation sectors.

2. Acoustic Absorption & Airflow Resistivity (σ)

Glass wool sound insulation relies on viscous friction created as sound waves penetrate the porous fiber lattice. The effectiveness of this thermal dissipation is governed byspecific airflow resistivity (σ, measured in Pa·s/m²).

• Higher Specific Surface Area: Finer fibers generate more viscous drag against oscillating air molecules.

• Optimized Flow Resistivity: A reduced fiber diameter elevates flow resistivity into the ideal acoustic range (10,000 to 50,000 Pa·s/m²) without sealing the material surface.

For acoustic enclosures, generator room paneling, and marine engine room linings, fine-fiber glass wool delivers superior Noise Reduction Coefficients (NRC), particularly in the difficult 250 Hz – 1000 Hz spectrum.

3. Shot Content, Tensile Strength, and Vibrational Resilience

In high-temperature or continuous-vibration environments (such as marine vessels, offshore platforms, and rail transit), structural stability is paramount.

The Hazard of High Shot Content

Un-fiberized glass droplets (known asshot) add dead weight without contributing to thermal resistance or sound absorption. Modern centrifugal technology controls fiber fineness while keeping shot content below0.5% – 1.0% by weight.

• Shot Content Minimization: Lower shot content directly translates to higher binder utilization efficiency, preventing internal fiber shear under structural vibration.

• Tensile & Compressive Strength: Fine fibers form a continuous, intertwined 3D matrix. This structure provides high elastic recovery (resilience) after compression packaging, reducing shipping volume costs while retaining full thickness upon installation.

4. Humidity Resistance & Marine Certification (MED Compliance)

Marine and offshore thermal insulation applications demand strict resistance to moisture absorption, salt fog corrosion, and hydrolytic degradation.

• Uniform Hydrophobic Binder Coating: Because fine fibers provide a predictable, uniform fiber network, thermosetting hydrophobic binders (such as phenolic or bio-based binders) coat the fiber surface consistently.

• Solas & MED (Marine Equipment Directive) Standards: Premium glass wool with controlled fine fiber diameters meets non-combustibility requirements underIMO FTP Code Part 1 & Part 5, making it compliant for EU Wheelmark / MED certified bulkhead and deck insulation.

Frequently Asked Questions (FAQ / B2B Engineering Buyer Guide)

Q1: What is the ideal fiber diameter for HVAC duct insulation?

A: For internal duct lining or external wrap requiring optimal sound attenuation and thermal efficiency, a nominal fiber diameter of4.0 to 5.0 µm combined with a density of24 to 32 kg/m³ provides the best balance of thermal performance, acoustics, and resistance to erosion under airflow velocities up to 20 m/s.

Q2: How does glass wool fiber diameter affect dust emissions during installation?

A: Coarse fibers (>7 µm) tend to be more brittle under mechanical stress, breaking into short airborne particulates during cutting. Controlled fine-fiber glass wool (4.0–5.0 µm) with optimized binder curing exhibits high flexibility, significantly reducing airborne fiber dust and installer skin irritation.

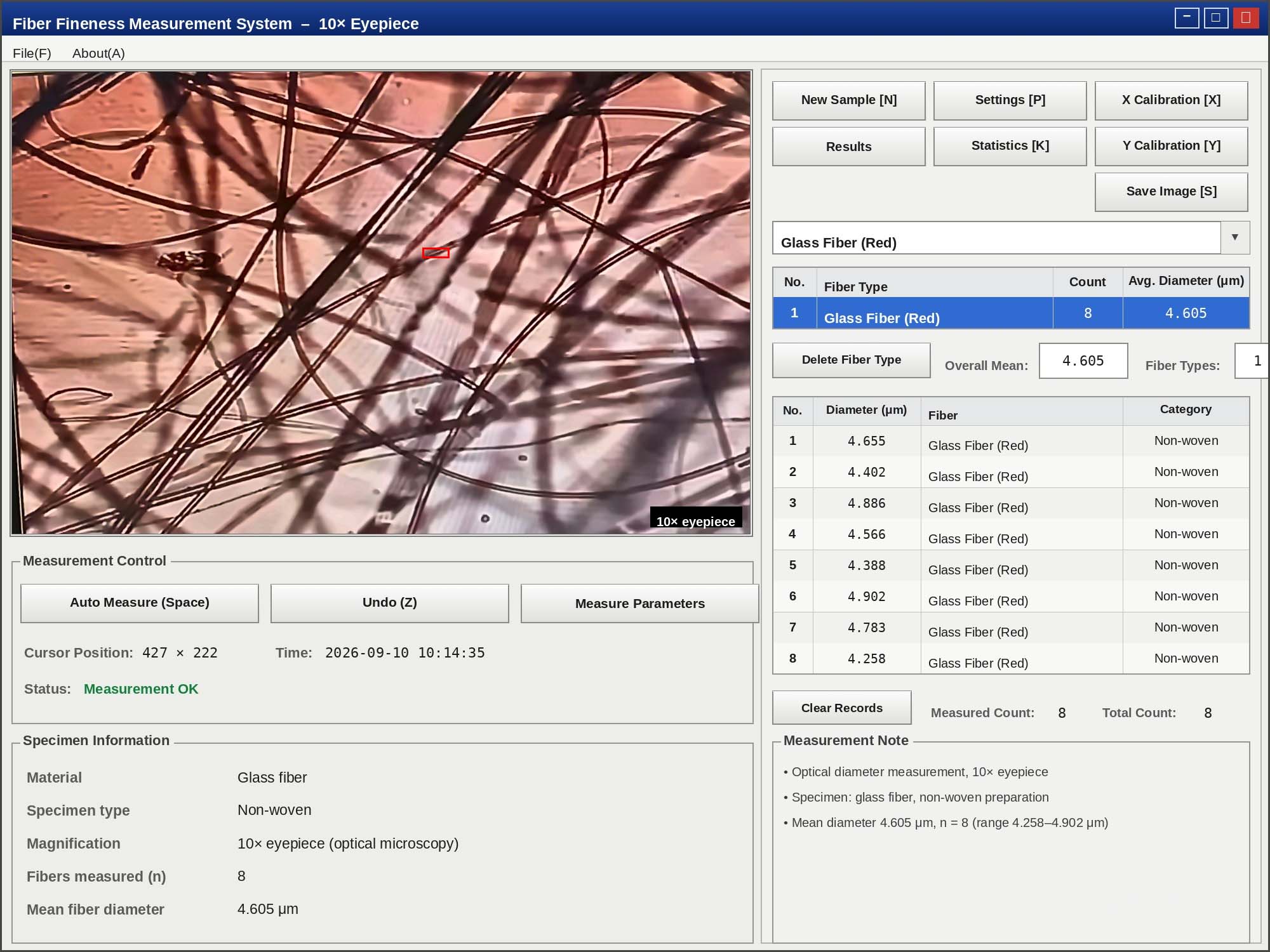

Q3: How is glass wool fiber diameter measured and quality controlled?

A: Fiber fineness is systematically evaluated usingAir-Permeability (Micronaire) methods or quantitativeScanning Electron Microscopy (SEM) image analysis in accordance with ISO / ASTM standards to ensure consistent batch-to-batch microstructural uniformity.

Partner with a Certified Glass Wool Insulation Manufacturer

Selecting the optimal glass wool fiber diameter requires balancing thermal conductivity goals, acoustic requirements, structural constraints, and regulatory certifications (MED/CE/ISO).

As a specialized high-performance insulation manufacturer with proprietary centrifugal fiberizing technology, we supply custom density, thickness, and fine-fiber glass wool products for marine, HVAC, and industrial applications worldwide.

[Request a Technical Data Sheet (TDS) & Free Sample Pack] or contact our thermal engineering team today to optimize your next project specification.
